GAS BURNER MODULATING GAS 8 P/M

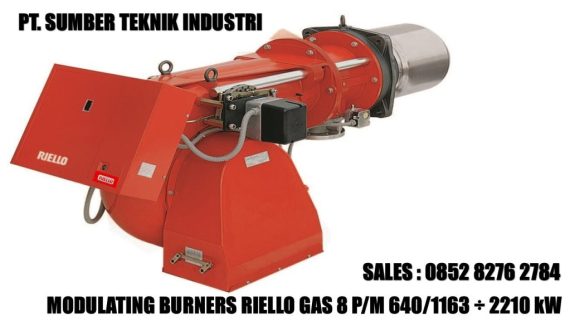

MODULATING GAS BURNER GAS 8 P/M 640/1163 ÷ 2210 kW
TECHNICAL DATA MODEL : GAS 8 PM
Burner operation mode : Modulating (with regulator and probes
accessories) or Two stage progressive
Modulation ratio at max. output : 4 ÷1
Servo Motor Type : SQM 10
Run time : 42
Heat OutPut kW : 640/1162÷2210
Heat OutPut Mcal/h : 550/1000÷1900
Working temperature °C min./max. : 0/40
Net calorific value G20 gas kWh/Nm3 : 10
G20 gas density kg/Nm3 : 0.71
G20 gas delivery Nm3/h : 64/116,3÷221
Net calorific value G25 gas kWh/Nm3 : 8.6
G25 gas density kg/Nm3 : 0.78
G25 gas delivery Nm3/h : 74,3/135÷256.7
Net calorific value LPG gas kWh/Nm : 29.2
LPG gas density kg/Nm : 2.16
LPG gas delivery Nm3/h : 21,9/39,9÷75,8
Fan Type : Centrifugal with forward curve blades
Air temperature : max. °C 60
Electrical supply Ph/Hz/V : 3N/50/400-230(±10%)
Auxiliary electrical supply Ph/Hz/V : 1/50/230 (±10%)
Control box Type : LANDIS LFL 1.333
Total electrical power kW : 5
Auxiliary electrical power kW: 1
Protection level : IP40
Motor electrical power : 4 kW
Rated motor current : A 9,5 – 16,4
Motor start up current : A 48 – 83
Motor protection level : IP55
Ignition transformer V1 – V2 : 230V – 1×8 kV, I1 – I2 : 1,8A – 30 mA
Operation : Intermittent(at least one stop every 24 h) – Continuous (at least one stop every 72 h)
Sound pressure dB(A) : 85.9
Sound output W : —-
CO emission mg/kWh : mg/kWh < 60
NOx emission mg/kWh : mg/kWh <120
Directive : 90/396 – 89/336 – 73/23 – 92/42 EEC
Conforming to : EN 676
Certification : CE 0085AP0941
MODULATING GAS BURNER GAS 9 P/M 870/1744 ÷ 3488 kW
TECHNICAL DATA MODEL : GAS 9 PM
Burner operation mode : Modulating (with regulator and probes
accessories) or Two stage progressive
Modulation ratio at max. output : 4 ÷1
Servo Motor Type : SQM 10
Run time : 42
Heat OutPut kW : 870/1744÷3488
Heat OutPut Mcal/h : 750/1500÷3000
Working temperature °C min./max. : 0/40
Net calorific value G20 gas kWh/Nm3 : 10
G20 gas density kg/Nm3 : 0.71
G20 gas delivery Nm3/h : 87/174,4÷348,8
Net calorific value G25 gas kWh/Nm3 : 8.6
G25 gas density kg/Nm3 : 0.78
G25 gas delivery Nm3/h : 101,1/202,6÷405,1
Net calorific value LPG gas kWh/Nm : 29.2
LPG gas density kg/Nm : 2.16
LPG gas delivery Nm3/h : 29,8/59,8÷119,6
Fan Type : Centrifugal with forward curve blades
Air temperature : max. °C 60
Electrical supply Ph/Hz/V : 3N/50/400-230(±10%)
Auxiliary electrical supply Ph/Hz/V : 1/50/230 (±10%)
Control box Type : LANDIS LFL 1.333
Total electrical power kW : 10,5
Auxiliary electrical power kW: 1,5
Protection level : IP40
Motor electrical power kW : 9 kW
Rated motor current A : A 17,5 – 30
Motor start up current A : A 113 – 195
Motor protection level : IP55
Ignition transformer V1 – V2 : 230V – 1×8 kV, I1 – I2 : 1,8A – 30 mA
Operation : Intermittent(at least one stop every 24 h) – Continuous (at least one stop every 72 h)
Sound pressure dB(A) : 89.4
Sound output W : —-
CO emission mg/kWh : mg/kWh < 60
NOx emission mg/kWh : mg/kWh <120
Directive : 90/396 – 89/336 – 73/23 – 92/42 EEC
Conforming to : EN 676
Certification : CE 0085AP0942
