BURNER RIELLO RL 34 MZ LIGHT OIL TWO STAGE

Data Tecknical Riello rl 34

Burner operation : 2 Tahap (Two stage / Dua Nozzle)

Modulation ratio at max. output : 2 ÷ 1

Heat output : 105/232 – 440 kW

Heat output : 90/200 -378 Mcal/h

Bahan Bakar : Solar 10-40 Liter/jam

Tipe Control box : Siemens RMO 88

Tipe Pompa : Suntec AN67C

Motor electrical power : 0,7 kW

Ignition transformer V1 – V2 : 230V – 2x12kV / 0,2A – 30mA

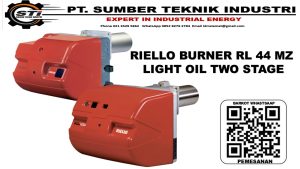

BURNER RIELLO RL 44 MZ LIGHT OIL TWO STAGE

DATA TEKNIKAL BURNER RIELLO RL 44

Burner operation : 2 Tahap (Two stage /

Dua Nozzle) Modulation ratio at max. output : 2 ÷ 1

Heat output : 105/232 – 440 kW

Heat output : 90/200 -378 Mcal/h

Bahan Bakar : Solar 10-40 Liter/jam Tipe

Control box : Siemens RMO 88

Tipe Pompa : Suntec AN67C

Motor electrical power : 0,7 kW

Ignition transformer V1 – V2 : 230V – 2x12kV / 0,2A –30mA

BURNER RIELLO RL 50 MZ LIGHT OIL TWO STAGE

Data Tecknical Riello RL 50

Electrical supply Ph/Hz/V -5 Auxiliary electrical supply Ph/Hz/V -3

Control box type RMO 88.53

Total electrical power kW 1,4

Auxiliary electrical power kW 0,3

Protection level IP 44 Power electric motor kW 1,1

Rated motor current A 4.7 – 2.7

Motor start current A 24.5 – 14

Motor protection level IP 55

Ignition transformer V1 – V2 230V – 2x5kV

BURNER RIELLO RL 64 MZ LIGHT OIL TWO STAGE

DATA TEKNIKAL BURNER RIELLO RL 64MZ

Electrical Power Consumption (W max)1800

Electrical Supply (V, Hz)230 – 400 VAC

with neutal ± 10%, 50/60 – three phase

Fuel Light Oil Operat Intermittent (min. 1 stop in 24 hours)

Two-stage (high and low flame) and one-stage (all-nothing)

Output 2nd Stage (kg/h) 33-70 2nd Stage (kW) 391-830 2nd

Stage (Mcal/h) 336-714 min. 1st Stage (kg/h) 17,4-33 min. 1st

Stage (kW) 206-391 min. 1st Stage (Mcal/h) 177-296
