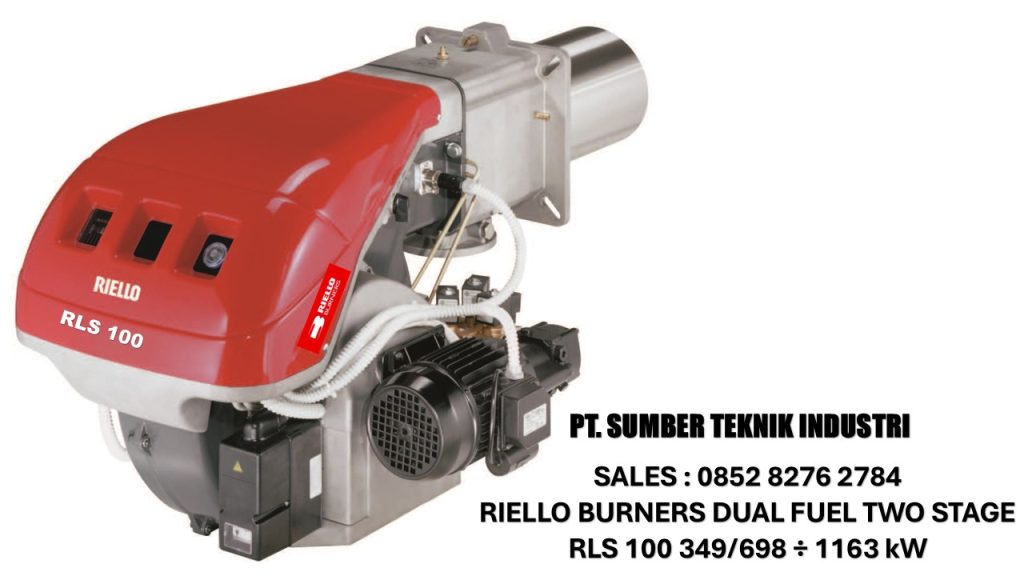

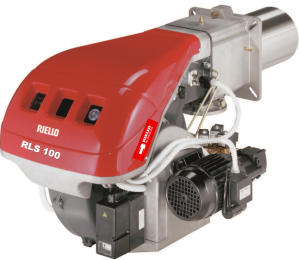

Riello burner RLS 100 bahan bakar gas dan solar pembakaran dua tahap bahan bakar mencakup rentang daya pembakaran dari 698 hingga 1163 kW, dan telah dirancang untuk digunakan pada boiler air panas suhu rendah atau menengah, generator udara panas atau uap, dan boiler minyak diatermik. Pengoperasiannya bersifat “dua tahap”; burner dilengkapi dengan perangkat elektronik LED PANEL, yang memberikan diagnostik status burner.

TECHNICAL DATA RIELLO  MODEL: RLS 100  DUAL FUEL TWO STAGE

OUTPUT POWER DELIVERY (1) kW: 349/698 ÷ 1163 / Kg/h: 29.5/59 ÷ 98
FUEL LIGHT OIL, viscosity at 20 °C: 6 mm2/s max (1,5 °E – 6 cSt)
NATURAL GAS: G20 (methane) – G21 – G22 – G23 – G25 GPL – G30  (propane)– G31 (butane)Gas pressure at maximum delivery (2) gas: G20/G25/G31 mbar : 10/13/12 – 360
OPERATION – Intermittent (min. 1 stop in 24 hours)
Two-stage (high and low flame) and single-stage (all – nothing)
Pump Output at 12 bar Pressure range Fuel temperature kg/h: 220 , bar: 10 – 20, °c max: 60
NOZZLES number: 2
STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
AMBIENT TEMPERATUR °C 0 – 40
COMBUSTION AIR TEMPERATURE °C max 60

Noise levels (3) Sound pressure
Sound power 77.5
dBA 88.5
Weight (including packaging): kg 78- 80(4)
Electrical data
Main electrical supply: 3 ~ 230/400V +/-10% 50Hz
Auxiliary circuit electrical supply 1N ~ 230V 50Hz
Fan motor IE3 rpm : 2860
V : 230/400
W : 1500
A : 5.5 – 3.4
Pump motor rpm : 2730
V : 230/240
W : 550
A : 3.6 (2.4)
Pump motor capacitor µF 25
Ignition transformer V1 – V2 : 230 V – 2 x 5 kV
I1 – I2 : 1.9 A – 30 mA
Max. main electrical supply absorbed electric power
Light oil : W max 1880
Gas W : max 1880
Max. auxiliary electrical supply absorbed electric power
Light oil : W Max 1000
Gas : W Max 400
Protection level IP 44
