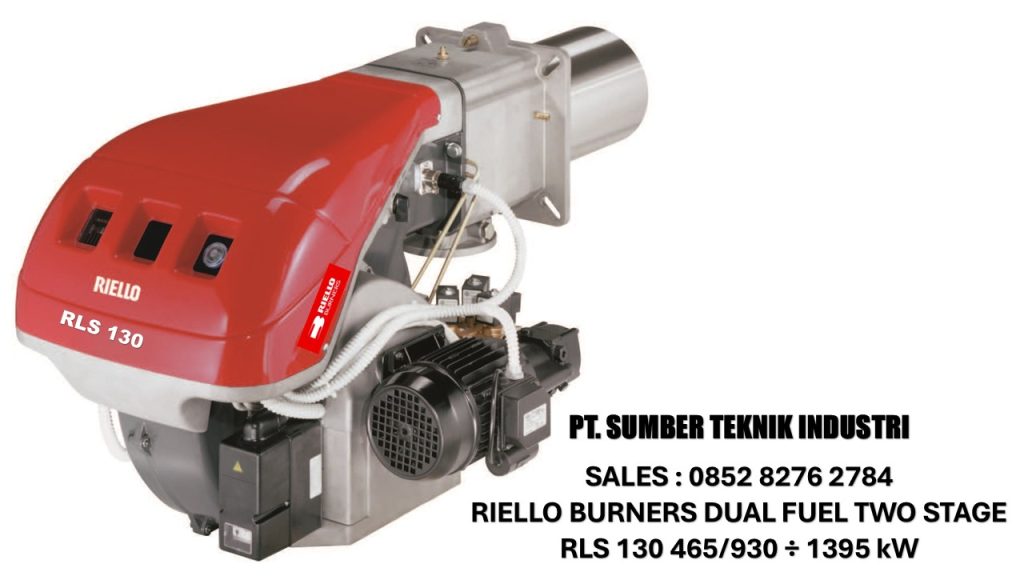

Burner riello RLS 130 gas dan solar pembakaran dua api  mencakup rentang daya pembakaran dari 930 hingga 1395 kW, dan telah dirancang untuk digunakan pada boiler air panas suhu rendah atau menengah, generator udara panas atau uap, dan boiler minyak diatermik. Pengoperasiannya bersifat “dua tahap”; burner dilengkapi dengan perangkat elektronik LED PANEL, yang memberikan diagnostik status burner.

TECHNICAL DATA BURNER RIELLO MODEL: RLS 130 TYPE: 686 T1 TWO STAGE

OUTPUT POWER DELIVERY (1) kW: 465/930 ÷ 1395 / Kg/h: 39/78 ÷ 118
FUEL LIGHT OIL, viscosity at 20 °C: 6 mm2/s max (1,5 °E – 6 cSt)
NATURAL GAS: G20 (methane) – G21 – G22 – G23 – G25
GPL – G30 (propane) – G31 (butane)
Gas pressure at maximum delivery (2) gas: G20/G25/G31 mbar : 11.5/14.4/15 – 360
OPERATION – Intermittent (min. 1 stop in 24 hours)
Two-stage (high and low flame) and single-stage (all – nothing)
Pump Output at 12 bar Pressure range Fuel temperature kg/h: 220 , bar: 10 – 20, °c max: 60
NOZZLES number: 2
STANDARD APPLICATIONS Boilers: water, steam, diathermic oil Description Related products

AMBIENT TEMPERATUR °C 0 – 40
COMBUSTION AIR TEMPERATURE °C max 60
Noise levels (3) Sound pressure
Sound power 80
dBA 91
Weight (including packaging): kg 80 – 82(4)
Electrical data
Main electrical supply: 3 ~ 230/400V +/-10% 50Hz
Auxiliary circuit electrical supply 1N ~ 230V 50Hz
Fan motor IE3 rpm : 2860
V : 230/400
W : 2200
A : 7.9 – 4.6
Pump motor rpm : 2730
V : 230/240
W : 550
A : 3.6 (2.4)
Pump motor capacitor µF 25
Ignition transformer V1 – V2 : 230 V – 2 x 5 kV
I1 – I2 : 1.9 A – 30 mA
Max. main electrical supply absorbed electric power
Light oil : W max 2588
Gas W : max 2588
Max. auxiliary electrical supply absorbed electric power
Light oil : W Max 1000
Gas : W Max 400
Protection level IP 44
