Seri pembakar PRESS 4G mencakup rentang pembakaran dari 107 hingga 1660 kW dan telah dirancang untuk digunakan dalam instalasi sipil dengan dimensi rata-rata, seperti area bangunan dan kelompok apartemen besar atau untuk digunakan dalam aplikasi industri, seperti pabrik kecil atau sedang Pengoperasiannya dua tahap pembakaran dua nozzle bahan bakar

BURNER RIELLO SERI PRESS 4G,3G,2G,1G,GW, PEMBAKARAN DUA TAHAP DAN DUA NOZLLE

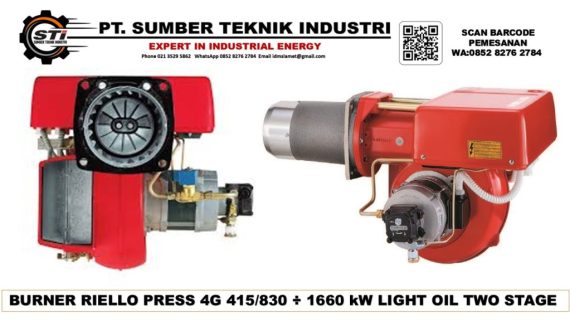

TECHNICAL DATA PRESS 4G

Thermal power : 830 – 1660 kW /714.000 –1.428.000 Mcal/h

Output : 35/70 – 140 kg/h Fuel : Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)

net calorific value kWh/kg 11.8, Mcal/kg 10.2 (10.200 Kcal/kg)

Electrical : supply Single-phase 220V +10%-10% ~ 60Hz

Motor : 1.85 A / 220VCapacitor : 8 µF

Ignition transformer : Primary: 1.8 A / 220V –

Secondary: 1x 8 kV – 30 mA

TECHNICAL DATA PRESS 3G

Thermal power 273 / 534 – 1186 kW – 234.800 / 459.200 – 1.020.000 kcal/h

Output 23 / 45 – 100 kg/hFuel Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)

Electrical supply Three-phase 220V +10% -10% ~ 60Hz

without neutral 380V +10% -10% ~ 60Hz with neutral

Motor 7.4 A / 220V – 4.3 A / 380V

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 2.05 kW

TECHNICAL DATA PRESS 2G

Thermal power 214 / 356 – 712 kW – 184.000 / 306.200 – 612.300 kcal/h

Output 18 / 30 – 60 kg/hFuel Gas oil, viscosity at 20 °C: 6mm2/s (1.5 °E)

Electrical supply Three-phase 220V +10% -10% ~ 60Hz

without neutral 380V +10% -10% ~ 60Hz with neutral

Motor 3.4 A / 220V – 1.9 A / 380V

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 0.85 kW

TECHNICAL DATA PRESS 1G

Thermal power 130 / 190 – 534 kW – 111.800 / 163.400 – 459.200 kcal/h

Output 11/ 16 – 45 kg/hFuel Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)

Electrical supply Three-phase 220V +10% -10% ~ 60Hz

without neutral 380V +10% -10% ~ 60Hz with neutral

Motor 2.4 A / 220V – 1.5 A / 380V

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 0.6 kW

TECHNICAL DATA PRESS GW

Thermal power 107 / 178 – 350 kW – 92.000 / 153.000 – 301.000 kcal/h

Output 9/15 – 30 kg/hFuel Gas oil, max. viscosity at 20 °C: 6 mm2/s (1.5 °E)

Electrical supply Single-phase 220V +10% -10% ~ 60Hz

Motor 1.85 A / 220V

Capacitor 8 µF

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 0.4 kW
