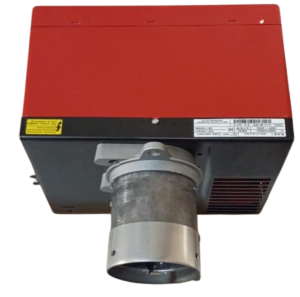

RIELLO 40 G SERIES One Stage Light Oil Burners

Pembakar minyak ringan satu tahap seri Riello 40 G, adalah rangkaian lengkap produk yang dikembangkan untuk menanggapi setiap permintaan pemanas rumah. Seri Riello 40 G tersedia dalam sepuluh model berbeda, dengan output mulai dari 12 hingga 240 kW, dibagi menjadi empat struktur berbeda. Semua model menggunakan komponen yang sama yang dirancang oleh Riello untuk seri Riello 40 G. Tingkat kualitas tinggi menjamin kerja yang aman. Dalam mengembangkan pembakar ini, perhatian khusus diberikan untuk mengurangi kebisingan, untuk kemudahan pemasangan dan penyesuaian, mendapatkan ukuran sekecil mungkin agar sesuai dengan jenis boiler apa pun yang tersedia di pasar. Semua model disetujui oleh EN 267 Standar Eropa dan sesuai dengan Petunjuk Eropa untuk EMC, Tegangan Rendah, Mesin dan Efisiensi Boiler. Semua burner Riello 40 G dinyalakan sebelum meninggalkan pabrik.

STATE OF SUPPLY

Completely automatic monobloc light oil burners, one stage operation, made up of:
– Fan with forward curve blades
– Metallic cover lined with sound-proofing material
– Air damper, completely closed in stand by, with adjustment
– Single phase electric motor 230 V, 50 Hz
– Combustion head fitted with:
– stainless steel head cone, resistant to high temperatures
– ignition electrodes
– flame stability disk
– Geared pump for fuel supply, fitted with:
– filter
– pressure regulator
– attachments for fitting a pressure gauge and vacuum meter
– internal by-pass for preparing for single-pipe installations
– Fuel feed solenoid valve incorporated in the pump
– Photocell for flame detection
– Electronic flame control equipment
– Light oil nozzle
– IP X0D (IP 40) protection level
– Fuel pre-heater (optional)
– Reduced output ignition mechanism (optional).
Standard equipment:
– Two flexible pipes for connection to the light oil supply line
– Two nipples for connection to the pump
– Flange, screws and nuts for fixing
– Thermal gasket
– 7-pin plug (on request)
– Maintenance assembly
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.

RIELLO 40 FS10 GAS BURNERS (ONE STAGE)

Pembakar gas satu tahap seri Riello 40 FS, adalah rangkaian lengkap produk yang dikembangkan untuk menanggapi setiap permintaan aplikasi industri ringan. Seri Riello 40 FS tersedia dalam lima model berbeda, dengan output mulai dari 11 hingga 220 kW, dibagi dalam empat struktur berbeda. Semua model menggunakan komponen yang sama yang dirancang oleh Riello untuk seri Riello 40 FS. Tingkat kualitas tinggi menjamin kerja yang aman. Burner Riello 40 FS dilengkapi dengan kotak kontrol berbasis mikroprosesor, dengan fungsi diagnostik. Dalam mengembangkan pembakar ini, perhatian khusus diberikan untuk mengurangi kebisingan, kemudahan pemasangan dan penyesuaian, untuk mendapatkan ukuran sekecil mungkin agar sesuai dengan jenis boiler apa pun yang tersedia di pasar. Semua model disetujui oleh EN 676 Standar Eropa dan sesuai dengan Petunjuk Eropa untuk EMC, Tegangan Rendah, Efisiensi Mesin dan Boiler. Semua burner Riello 40 FS diuji sebelum meninggalkan pabrik.

STATE OF SUPPLY
F S 3 1/230/50
Series : F
Fuel : S Natural gas
Size
Electrical supply to the system : 1/230/50 1/230V/50Hz
Monoblock, gas burners, completely automatic, with one stage settings fitted with:
– Fan with forward curve blades
– Cover lined with sound-deadening material
– Metallic and fixed air damper with adjustment
– Single phase electric motor 230 V, 50 Hz
– Combustion head fitted with:
– stainless steel head cone, resistant to high temperatures
– ignition electrodes
– ionisation probe
– gas distributor
– flame stability disk
– flame inspection window
– Adjustable air pressure switch, with graduated selector, to guarantee burner lock out in the case of insufficient
combustible air
– Microprocessor-based flame control box, with diagnostic functions
– IP X0D (IP 40) electric protection level.
Standard equipment:
– Flange insulation screen
– Screws and nuts for fixing the flange to the boiler
– 7-pole socket
– Hinge
– Reduction nipple Rp 1/2” – Rp 3/8” (for R40 FS3 only)
– Grommet
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.

PEMBAKAR GAS (DUA TAHAP) gas 5/2

Pembakar seri GAS/2 mencakup jarak tembak dari 130 hingga 3200 kW dan telah dirancang untuk digunakan dalam instalasi sipil dengan dimensi rata-rata, seperti area bangunan dan kelompok apartemen besar atau untuk digunakan dalam aplikasi industri, seperti pabrik kecil atau menengah. Operasi adalah dua tahap; kepala pembakaran, yang dapat diatur berdasarkan output yang dibutuhkan, memungkinkan kinerja optimal memastikan pembakaran yang baik dan mengurangi konsumsi bahan bakar. Fitur utama dari pembakar ini adalah keandalannya karena konstruksinya yang sederhana dan kuat, yang memungkinkan pengoperasian tanpa intervensi pemeliharaan tertentu. Perawatan yang disederhanakan dicapai dengan sistem batang geser, yang memungkinkan akses mudah ke semua komponen penting kepala pembakaran. Semua komponen listrik mudah diakses hanya dengan melepas panel pelindung,

STATE OF SUPPLY
Monoblock forced draught gas burner, two stage operation, made up of:
– Air suction circuit
– Fan with forward curved blades
– Air damper for air setting
– Combustion head, that can be set on the basis of required output, fitted with:
– stainless steel end cone, resistant to corrosion and high temperatures
– ignition electrodes
– flame stability disk
– Minimum air pressure switch
– Single phase or three phases electrical motor
– Microprocessor-based burner safety control box, with diagnostic function
– Flame inspection window
– Slide bars for easier installation and maintenance
– Protection filter against radio interference
– IP X0D (IP 40) protection level.
Standard equipment:
– 1 gas train flange
– 1 flange gasket
– 1 insulating screen
– 8 screws for fixing the burner flange to the boiler
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.

PEMBAKAR GAS (DUA TAHAP)RS 38

Seri burner RS ​​mencakup rentang pembakaran dari 44 hingga 2290 kW, dan telah dirancang untuk digunakan dalam boiler air panas suhu rendah atau sedang, boiler udara panas atau uap, boiler minyak diatermik. Operasi adalah “dua tahap progresif”; pembakar dilengkapi dengan kotak kontrol keamanan pembakar berbasis mikroprosesor yang menyediakan indikasi operasi dan diagnosis penyebab kesalahan. Peningkatan kinerja kipas dan kepala pembakaran, menjamin fleksibilitas penggunaan dan kerja yang sangat baik di semua kecepatan pembakaran. Desain eksklusif memastikan pengurangan dimensi, penggunaan dan perawatan sederhana. Optimalisasi emisi suara dijamin oleh desain khusus dari sirkuit penghisap udara dan dengan memasukkan bahan kedap suara. Berbagai macam aksesori menjamin fleksibilitas kerja yang lebih tinggi.

Burner:
Monoblock forced draught gas burner with two stage operation, fully automatic, made up of:
– Air suction circuit lined with sound-proofing material
– Fan with reverse curve blades (straight blades on the 190 model) high performance with low sound
emissions
– Air damper for air flow setting and butterfly valve for regulating fuel output on 1st and 2nd stage
controlled by a servomotor with variable cam
– Starting motor at 2800 rpm, three-phase 400V with neutral, 50Hz (available also single-phase, 230V,
50Hz for the RS 28 and 38 models)
– Combustion head, that can be set on the basis of required output, fitted with:
– stainless steel end cone, resistant to corrosion and high temperatures
– ignition electrodes
– ionisation probe
– gas distributor
– flame stability disk
– Minimum air pressure switch stops the burner in case of insufficient air quantity at the combustion head
– Flame control panel, with lock-out pilot light and lock-out reset button
– Electronic control device: STATUS PANEL or LED PANEL
– Burner on/off selection switch
– 1st – 2nd stage manual switch
– Flame inspection window
– Slide bars for easier installation and maintenance
– Protection filter against radio interference
– IP 44 electric protection level.
Gas train
Fuel supply line, in the MULTIBLOC configuration (from a diameter of 3/4” until a diameter 2”) or
COMPOSED configuration (from a diameter of DN 65 until a diameter of DN 100), fitted with:
– Filter
– Stabiliser
– Minimum gas pressure switch
– Safety valve
– Valve seal control (for output > 1200 kW)
– One stage working valve with ignition gas output regulator.
Conforming to:
– 89/336/EEC directive (electromagnetic compatibility)
– 73/23/EEC directive (low voltage)
– 92/42/EEC directive (performance)
– 90/396/EEC directive (gas)
– EN 676 (gas burners).
Standard equipment:
– 1 gas train gasket
– 1 flange gasket
– 4 screws for fixing the flange
– 1 thermal screen
– 4 screws for fixing the burner flange to the boiler
– Wiring loom fittings for the electrical connection (RS 28 – 38 – 50)
– 2 slide bar extensions (for extended head models and RS 190 model)
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.
Available accessories to be ordered separately:
– Head extension kit
– Head length reduction kit
– Continuous ventilation kit
– Sound-proofing box
– LPG kit
– Gas train adapter
– Seal control kit
– Stabiliser spring.

LIGHT OIL (TWO STAGE) PRESS GW

Burner seri PRESS G mencakup jarak tembak dari 107 hingga 1660 kW dan telah dirancang untuk digunakan dalam instalasi sipil dengan dimensi rata-rata, seperti area bangunan dan kelompok apartemen besar atau untuk digunakan dalam aplikasi industri, seperti pabrik kecil atau menengah. Operasi adalah dua tahap; pembakar dilengkapi dengan kotak kontrol keamanan pembakar berbasis mikroprosesor yang menyediakan indikasi operasi dan diagnosis penyebab kesalahan. Kepala pembakaran, yang dapat diatur berdasarkan output yang dibutuhkan, memungkinkan kinerja optimal memastikan pembakaran yang baik dan mengurangi konsumsi bahan bakar. Fitur utama dari burner ini adalah keandalannya karena konstruksinya yang sederhana dan kuat, yang memungkinkan pengoperasian tanpa intervensi pemeliharaan tertentu. Perawatan yang disederhanakan dicapai dengan sistem bilah geser, yang memungkinkan akses mudah ke semua komponen penting kepala pembakaran. Semua komponen listrik dapat diakses dengan mudah hanya dengan melepas panel pelindung, sehingga menjamin intervensi yang cepat dan sederhana pada komponen.

STATE OF SUPPLY
Monoblock forced draught oil burner with two stage operation, fully automatic, made up of:
– Air suction circuit lined with sound-proofing material
– Fan with forward curve blades with high performance concerning pressure and air delivery
– Air damper for air setting
– Hydraulic ram for air damper control
– Starting motor at 2800 rpm, three-phase 400V with neutral, 50Hz (single-phase, 230V and 50Hz for the PRESS GW
model)
– Combustion head, that can be set on the basis of required output, fitted with:
– stainless steel end cone, resistant to corrosion and high temperatures
– ignition electrodes
– flame stability disk
– Fan pressure test point
– Gears pump for high pressure fuel supply, fitted with:
– filter
– pressure regulator
– connections for installing a pressure gauge and vacuometer
– internal by-pass for single pipe installation
– Valve unit with two delivery oil valves on the output circuit
– Photocell for flame detection
– Microprocessor-based burner safety control box, with diagnostic function
– Slide bars for easier installation and maintenance
– Protection filter against radio interference
– IP 44 electric protection level.
Standard equipment:
– 2 flexible pipes for connection to the oil supply network
– 2 gaskets for the flexible pipes
– 2 nipples for connection to the pump
– 4 screws for fixing the burner flange to the boiler
– 1 thermal screen
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.

GAS BURNERS (MODULATING)GAS 10 P/M

 Seri GAS P/M mencakup jarak tembak dari 130 hingga 4885 kW. Operasi ditampilkan oleh operasi dua tahap progresif atau modulasi penuh, dengan sistem kontrol dan probe modulasi canggih. Burner seri GAS P/M sangat cocok untuk aplikasi yang membutuhkan fleksibilitas kontrol (proses, uap, penyerapan pendinginan) di mana output variabel diperlukan. Karena struktur lembaran logamnya, mereka secara khusus cocok rusak atau cacat. Perawatan yang disederhanakan dicapai dengan batang geser yang memungkinkan akses ke kepala pembakaran tanpa perlu mengeluarkan burner dari boiler.

STATE OF SUPPLY
Monoblock forced draught gas burner, two stage progressive operation or modulating with a kit, made up of:
– Air suction circuit
– Fan with forward curved blades
– Air damper for air setting controlled by a servomotor;
– Combustion head, that can be set on the basis of required output, fitted with:
– stainless steel end cone, resistant to corrosion and high temperatures
– ignition electrodes
– flame stability disk
– Servomotor for air and gas delivery regulation
– Maximum gas pressure switch (except for GAS 3 P/M model and GAS 6 P/M code 3753681)
– Minimum air pressure switch
– Single phase or three phases electrical motor
– Ionisation probe
– Flame inspection window
– Slide bars for easier installation and maintenance
– Protection filter against radio interference
– IP X0D (IP 40) protection level.
Standard equipment:
– 1 gas train flange
– 1 flange gasket
– 1 insulating screen
– 8 screws for fixing the burner flange to the boiler (12 for GAS 8 P/M – GAS 9 P/M and GAS 10 P/M)
– 4 wiring looms for electrical connections
– 1 star delta starter (for GAS 8 P/M – GAS 9 P/M and GAS 10 P/M)
– 2 wiring looms for electrical connections to the star delta starter (for GAS 8 P/M – GAS 9 P/M and GAS 10 P/M)
– 8 washers (for GAS 8 P/M – GAS 9 P/M and GAS 10 P/M)
– 2 bar extensions (only for extended head versions of GAS 8 P/M – GAS 9 P/M and GAS 10 P/M)
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.

PEMBAKAR BAHAN BAKAR DUAL (MODULASI) RLS 190/M MZ

Seri burner RLS/M MZ mencakup rentang pembakaran dari 550 hingga 2460 kW, dan telah dirancang untuk digunakan dalam boiler air panas atau super panas, generator udara atau uap panas, boiler minyak diatermik. Operasi adalah “dua tahap” di sisi minyak dan “modulasi” di sisi gas dengan pemasangan regulator logika PID dan probe masing-masing. Burner seri RLS/M MZ menjamin tingkat efisiensi tinggi di semua berbagai aplikasi, sehingga mengurangi konsumsi bahan bakar dan biaya pengoperasian. Optimalisasi emisi suara dijamin oleh desain khusus sirkuit penghisap udara dan penggunaan bahan kedap suara. Desain eksklusif memastikan pengurangan dimensi, penggunaan dan perawatan sederhana. Berbagai macam aksesori menjamin fleksibilitas kerja yang lebih tinggi.

STATE OF SUPPLY
Monoblock forced draught dual fuel burner with two stage operation at the oil side and two stage progressive or
modulating operation at the gas side, with a specific kit, fully automatic, made up of:
– air suction circuit lined with sound-proofing material
– centrifugal fan with high performance and low sound emissions
– air damper for air flow setting and butterfly valve for regulating gas output controlled by a servomotor with variable
cam
– starting motor at 2800 rpm, three-phase 400V with neutral, 50Hz
– low emission combustion head, that can be set on the basis of required output, fitted with:
– stainless steel end cone, resistant to corrosion and high temperatures
– ignition electrodes
– gas distributor
– flame stability disk
– maximum gas pressure switch to stop the burner in the case of excess pressure on the fuel supply line
– minimum air pressure switch stops the burner in case of insufficient air quantity at the combustion head
– gears pump for high pressure fuel supply
– pump starting motor
– oil safety valves
– two oil valves (1st and 2nd stage)
– burner safety control box
– UV photocell for flame detection
– burner on/off selection switch
– manual or automatic output increase/decrease selection switch
– Oil/Gas selector
– flame inspection window
– slide bars for easier installation and maintenance
– protection filter against radio interference
– IP 44 electric protection level.
Standard equipment:
– 1 gas train flange
– 1 flange gasket
– 4 screws for fixing the flange
– 1 thermal screen
– 4 screws for fixing the burner flange to the boiler
– 2 flexible pipes for connection to the oil supply network
– 2 nipples for connection to the pump with gaskets
– Instruction handbook for installation, use and maintenance
– Spare parts catalogue.
