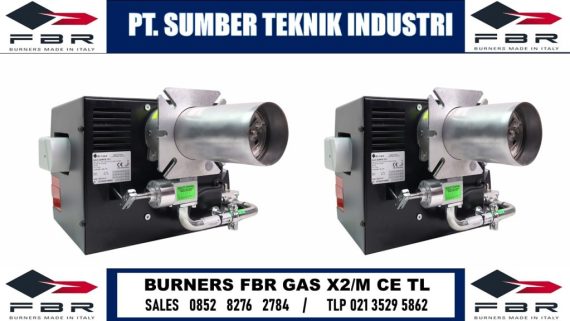

BURNER FBR GAS X 2 MCE TWO STAGES MODULATING

FBR GAS X2

BURNER FBR GAS X 2 MCE TWO STAGES MODULATING

GAS BURNERS TWO STAGES PROGRESSIVE OR MODULATING

TECHNICAL DATA BURNERS FBR GAS X2/MCE

Thermal power min. 1°st. / min. 2°st. – max. 2°st.15/35-80 [Mcal/h]

Thermal power min. 1°st. / min. 2°st. – max. 2°st. *17/41-93  [kW]

Gas flow G20 (NATURAL GAS) min. 1°st. / min. 2°st. – max. 2°st. *1.7/4.1-9.4  [Nm³/h]

Fuel: NATURAL GAS (second family) – L.P.G. (third family)

Fuel category:  I2R,I2H,I2L,I2E,I2E+,I2Er,I2ELL, I2E(R)B/I3B/P,I3+,I3P,I3B,I3R

Intermitted working operation (min. 1 stop every 24 hours) two stages progressive or modulating

Environmental conditions operation / storage:  -15…+40°C / -20…+70°C, umidità rel. max. 80%

Max. temperature combustion air 60[°C]

Minimum pressure gas train D3/4″-S NATURAL GAS/L.P.G. 18/24[mbar]

Minimum pressure gas train D1″-S NATURAL GAS/L.P.G. -/-[mbar]

Minimum pressure gas train D1″1/4-S NATURAL GAS/L.P.G. -/-[mbar]

Minimum pressure gas train D1″1/2-S NATURAL GAS/L.P.G. -/-[mbar]

Maximum pressure at the entry of valves (Pe. max) 360[mbar]

Nominal electric power 130 [W]

Fan motor 75 [W]

Nominal current absorption 0.6[A]

Power supply:  1N~230V – 50Hz

Electric protection degree:  IP 40

Noisiness *** min. – max. 61-62[dBA]

Burner weight 11[kg]

DETAILED SPECIFICATION

  • Protection cover with noise reduction plate;
  • Flange and insulating gasket for fixing at boiler;
  • Single phase power supply;
  • Safety air pressure switch to stop the burner in lock-out in case of failed or anomalous fan operation;
  • Gas train completely assembled and tested; complete of one-block valve A class (1st stage slow opening + safety), minimum gas

pressure switch and filter stabilizer;

  • Ionisation probe for flame detection;
  • IP 40 electric protection level;
  • Spherical gas valve servo-controlled; progressive start and free way passage with total opening;
  • Servomotor for air shutter and for the spherical gas valve;
  • Set up for the additional specific kit that transforms burner operation as modulating i.e. the modulating kit allows to supply any

power between the minimun and the maximum value based on instantaneous loading request.
