RIELLO RL 250 MZ RL 250 MZ 600/1250 ÷ 2700 kW LIGHT OIL TWO STAGE

TECHNICAL DATA MODEL RL 250

Burner operation mode Two stage
Modulation ratio to max. output 2 ÷ 1
type Servomotor LKS 210 run times– 7
Heat output kW 1250 ÷ 2700
Mcal/h172/1050 – 2115
Working temperature °C min./max. 0/40
FUEL/AIR DATA
Net calorifi c value kWh/kg 11,8
Kcal/kg 10.200
Viscosity at 20°C mm2/s (cSt) 4 ÷ 6
Pump type AL 95C
output kg/h at 12 bar 107
Atomised pressure bar 21
Oil temperature Max. °C 90
Fan type -2
Air temperature Max. °C 60
ELECTRICAL DATA
Electrical supply Ph/Hz/V -5
Auxiliary electrical supply Ph/Hz/V -3
Control box type RMO 88.53
Total electrical power kW 3,2
Auxiliary electrical power kW 0,3
Protection level IP 44
Power electric motor kW 2,2
Rated motor current A 4.7 – 2.7
Motor start current A 24.5 – 14
Motor protection level IP 55
Ignition transformer V1 – V2 230V – 2x5kV

BURNER RIELLO  RL 190 759/1423 ÷ 2443 kW LIGHT OIL TWO STAGE

DATA TECKNICAL BURNER RIELLO RL 190

Burner operation : 2 Tahap (Two stage / Dua Nozzle)
Modulation ratio at max. output : 2 ÷ 1
Heat output : 759/1423÷2443 kW
Heat output : 653/1224÷2100 Mcal/h
Bahan Bakar : Solar 64/120÷206 Liter/jam
Tipe Control box : Siemens RMO 88
Tipe Pompa : Suntec J 7CC
Motor electrical power : 5.9 kW
Ignition transformer V1 – V2 : 230V – 2x5kV / 1,9A –35mA

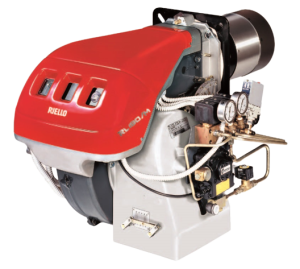

BURNER RIELLO  RL 130 486/948 ÷ 1540 kW  LIGHT OIL TWO STAGE

TECHNICAL DATA MODEL : RL 130 TYPE : 662 T1

OUTPUT DELIVERY (1) 2nd stage : 948 – 1540 kW , 816 – 1325 Mcal/h , 80 – 130 kg/h
OUTPUT DELIVERY (1) 1st stage : 486 – 948 kW , 418 – 816 Mcal/h , 41 – 80 kg/h
FUEL : LIGHT OIL/SOLAR
Net calorific value : 11.8 kWh/kg, 10,2 (10.200 kcal/kg),
Density : 0.82 – 0.85 kg/dm
Viscosity at 20 °C mm2/s max 6 (1,5 °E – 6 cSt)
OPERATION – Intermittent (min. 1 stop in 24 hours).
Two-stage (high and low flame) and single-stage (all – nothing).
NOZZLES number 2
STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
AMBIENT TEMPERATURE : °C 0 – 40
COMBUSTION AIR TEMPERATURE : °C max 60
PUMP delivery (at 20 bar) kg/h 220 pressure range bar : 10 – 20 fuel temperature : ° C max 60
ELECTRICAL PROTECTION : IP 44
NOISE LEVELS (2) : dBA 78.5

ELECTRICAL DATA Motor IE1
POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
ELECTRICAL MOTOR – rpm: 2860, kW: 2,2, V: 230/400, A: 8.5/4.9
IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
ELECTRICAL POWER CONSUMPTION – kW max: 3.2 Motor IE2
POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
ELECTRICAL MOTOR – rpm: 2860, kW: 2,2, V: 230/400, A: 7.9/4.6
IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
ELECTRICAL POWER CONSUMPTION – kW max: 3.1
