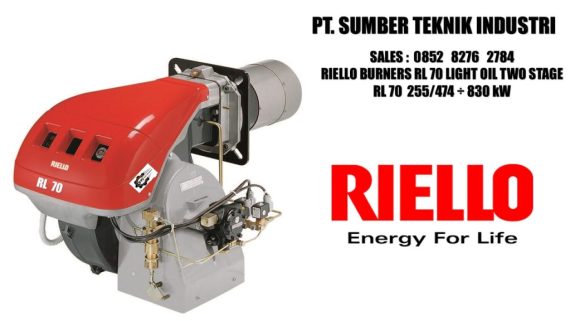

Burner Riello RL 70 adalah pembakar minyak ringan (solar) dua tahap yang dirancang untuk aplikasi industri seperti boiler, pemanas termal, insinerator, dan pengering, dengan kapasitas antara 40-70 kg/jam atau setara dengan 474-830 kW. Burner ini memiliki panel kontrol berbasis mikroprosesor yang menampilkan status dan penyebab kesalahan, serta dilengkapi dengan dua nozel untuk operasi dua tahap.

TECHNICAL DATA MODEL : RL70 TYPE : 660 T1

OUTPUT DELIVERY (1) 2nd stage : 474 – 830 kW , 408 – 714 Mcal/h , 40 – 70 kg/h

OUTPUT DELIVERY (1) 1st stage : 255 – 474 kW , 219 – 408 Mcal/h , 21.5 – 40 kg/h

FUEL : LIGHT OIL/SOLAR

Net calorific value : 11.8 kWh/kg, 10,2 (10.200 kcal/kg),

Density : 0.82 – 0.85 kg/dm

Viscosity at 20 °C mm2/s max 6 (1,5 °E – 6 cSt)

OPERATION – Intermittent (min. 1 stop in 24 hours).

Two-stage (high and low flame) and single-stage (all – nothing).

NOZZLES number 2

STANDARD APPLICATIONS Boilers: water, steam, diathermic oil

AMBIENT TEMPERATURE : °C 0 – 40

COMBUSTION AIR TEMPERATURE : °C max 60

PUMP delivery (at 20 bar) kg/h 107

pressure range bar : 10-20

fuel temperature : ° C max 60

ELECTRICAL PROTECTION : IP 44

NOISE LEVELS (2) : dBA 75,0

ELECTRICAL DATA

Motor IE1

POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase

ELECTRICAL MOTOR – rpm: 2800, kW: 1,1, V: 230/400, A: 4.7/2.7

IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA

ELECTRICAL POWER CONSUMPTION – kW max: 2.0

Motor IE2

POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase

ELECTRICAL MOTOR – rpm: 2860, kW: 1,1, V: 230/400, A: 4.1/2.4

IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA

ELECTRICAL POWER CONSUMPTION – kW max: 1.9
