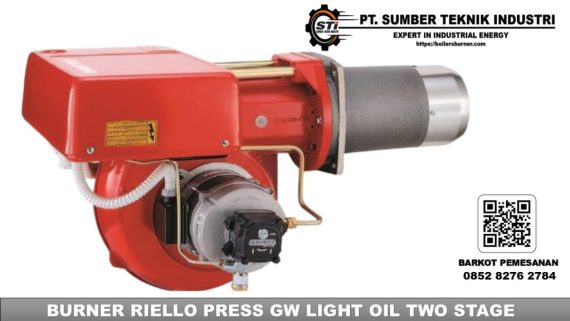

BURNER RIELLO PRESS 2G LIGHT OIL TWO STAGE 214/356 ÷ 712 kW

TECHNICAL DATA PRESS 2G

Thermal power 214 / 356 – 712 kW – 184.000 / 306.200 – 612.300 kcal/h

Output 18 / 30 – 60 kg/h

Fuel Gas oil, viscosity at 20 °C: 6mm2/s (1.5 °E)

Electrical supply Three-phase 220V +10% -10% ~ 60Hz

without neutral 380V +10% -10% ~ 60Hz with neutral

Motor 3.4 A / 220V – 1.9 A / 380V

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 0.85 kW

BURNER RIELLO PRESS 3G LIGHT OIL TWO STAGE 273/534 ÷ 1168 kW

TECHNICAL DATA PRESS 3G

Thermal power 273 / 534 – 1186 kW – 234.800 / 459.200 – 1.020.000 kcal/h Output 23 / 45 – 100 kg/h

Fuel Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)

Electrical supply Three-phase 220V +10% -10% ~ 60Hz

without neutral 380V +10% -10% ~ 60Hz with neutral

Motor 7.4 A / 220V – 4.3 A / 380V

Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA

Absorbed electrical power 2.05 kW

BURNER RIELLO PRESS 4G LIGHT OIL TWO STAGE 415/830 ÷ 1660 kW

TECHNICAL DATA PRESS 4G

Thermal power : 830 – 1660 kW /714.000 –1.428.000 Mcal/h

Output : 35/70 – 140 kg/h

Fuel : Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)

net calorific value kWh/kg 11.8, Mcal/kg 10.2 (10.200 Kcal/kg)

Electrical : supply Single-phase 220V +10%-10% ~ 60Hz

Motor : 1.85 A / 220V

Capacitor : 8 µFIgnition transformer : Primary: 1.8 A / 220V –

Secondary: 1x 8 kV – 30 mA

Peralatan standar:

– 2 pipa fleksibel untuk sambungan ke jaringan pasokan minyak

– 2 gasket untuk pipa fleksibel

– 2 puting untuk sambungan ke pompa

– 4 sekrup untuk mengencangkan flens pembakar ke boiler

– 1 layar termal

– Buku petunjuk pemasangan, penggunaan, dan perawatan

– Katalog suku cadang.
