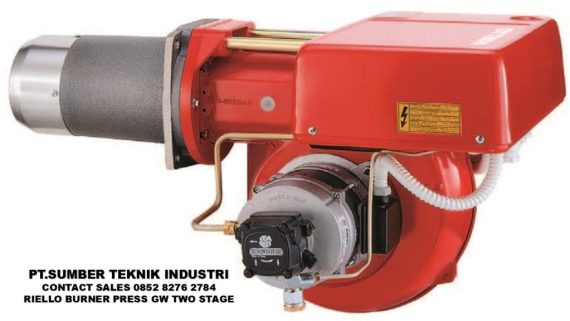

PRESS GW SERIES Two Stage Light Oil Burners

TECHNICAL DATA PRESS GW
Thermal power 107 / 178 – 350 kW – 92.000 / 153.000 – 301.000 kcal/h
Output 9/15 – 30 kg/h
Fuel Gas oil, max. viscosity at 20 °C: 6 mm2/s (1.5 °E)
Electrical supply Single-phase 220V +10% -10% ~ 60Hz
Motor 1.85 A / 220V
Capacitor 8 µF
Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA
Absorbed electrical power 0.4 kW

PRESS 1GSERIES Two Stage Light Oil Burners

TECHNICAL DATA PRESS 1G
Thermal power 130 / 190 – 534 kW – 111.800 / 163.400 – 459.200 kcal/h
Output 11/ 16 – 45 kg/h
Fuel Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)
Electrical supply Three-phase 220V +10% -10% ~ 60Hz
without neutral 380V +10% -10% ~ 60Hz with neutral
Motor 2.4 A / 220V – 1.5 A / 380V
Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA
Absorbed electrical power 0.6 kW

PRESS 2GSERIES Two Stage Light Oil Burners

TECHNICAL DATA PRESS 2G
Thermal power 214 / 356 – 712 kW – 184.000 / 306.200 – 612.300 kcal/h
Output 18 / 30 – 60 kg/h
Fuel Gas oil, viscosity at 20 °C: 6mm2/s (1.5 °E)
Electrical supply Three-phase 220V +10% -10% ~ 60Hz
without neutral 380V +10% -10% ~ 60Hz with neutral
Motor 3.4 A / 220V – 1.9 A / 380V
Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA
Absorbed electrical power 0.85 kW

PRESS 3GSERIES Two Stage Light Oil Burners

TECHNICAL DATA PRESS 3G
Thermal power 273 / 534 – 1186 kW – 234.800 / 459.200 – 1.020.000 kcal/h
Output 23 / 45 – 100 kg/h
Fuel Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)
Electrical supply Three-phase 220V +10% -10% ~ 60Hz
without neutral 380V +10% -10% ~ 60Hz with neutral
Motor 7.4 A / 220V – 4.3 A / 380V
Ignition transformer Primary: 1.8 A / 220V – Secondary: 1x 8 kV – 30 mA
Absorbed electrical power 2.05 kW

PRESS 4GSERIES Two Stage Light Oil Burners

TECHNICAL DATA PRESS 4G
Thermal power : 830 – 1660 kW /714.000 –1.428.000 Mcal/h
Output : 35/70 – 140 kg/h
Fuel : Gas oil, max. viscosity at 20 °C: 6mm2/s (1.5 °E)
net calorific value kWh/kg 11.8, Mcal/kg 10.2 (10.200 Kcal/kg)
Electrical : supply Single-phase 220V +10%-10% ~ 60Hz
Motor : 1.85 A / 220V Capacitor : 8 µF
Ignition transformer : Primary: 1.8 A / 220V –
Secondary: 1x 8 kV – 30 mA
